DERIVED TYPE mesh More...

Data Types
interface	clear

interface	mesh
	Derived type mesh. More...

interface	print

interface	valid

interface	write

Functions/Subroutines
subroutine	mesh_clear (m)
	Destructor for mesh type. More...

subroutine, public	mesh_clear_2 (m)
	Destructor for mesh type clears the data tn the mesh built after 'call create(...)'. More...

subroutine	mesh_print (m)
	display cell types in the mesh More...

logical function	mesh_valid (m)
	Verify allocation. More...

type(mesh) function	readmesh (fileName, fileFormat)
	Constructor for the type mesh More...

subroutine	gmesh_readmesh (m)
	read mesh from gmsh ASCII file More...

subroutine, public	mesh_create_cltab (m, clTab)
	mesh constructor, second step, cell types and cell nodes are known cell types are in mclType cell node index are in clTab More...

subroutine	mesh_write (m, fileName, fileFormat, cell_tags)
	Write mesh 'm' to file 'fileName' with format 'fileFormat'. More...

subroutine	gmesh_writemesh (m, cell_tags)
	write mesh to gmsh ASCII file More...

type(mesh) function	mesh_create_1d (a, b, n)
	Constructor for the type mesh More...

subroutine, public	mesh_create_end (m)
	mesh constructor : final step More...

subroutine, public	getndcoord (ndCoord, s, ndInd, n, m)
	returns node coordinates of node indexes in ndInd More...

subroutine, public	flag_mesh_cells (flag, m, dim, f)
	OUTPUT: flag(:) array of logical with size mnbCl. More...

subroutine, public	closest_node (V, dist, pt, m, nDToNd, start)
	For each point X=pt(:,ii), determines a node V in the mesh m that minimises \|X-V\|. More...

logical function, public	cell_orientation (m, cl)
	has cell 'cl' the direct orientation ? More...

subroutine, public	interface_orientation (nb_itf, eps, n, m, cl)
	eps(ii) = +1 if the interface ii of the cell cl in mesh m is oriented outwards the cell cl = -1 otherwise More...

Detailed Description

DERIVED TYPE mesh

A mesh 'm' is a collection of cells (see cell_mod)

the mesh cells can be of various types (vertexes, edges, triangles, tetrahedra...),
the mesh nodes are the nodes of its cells,
the mesh description is completed with connectivity graphs,
- cell \( \rightarrow\) node connectivity: m%clToNd
- node \( \rightarrow\) cell connectivity: m%ndToCl
- interface \( \rightarrow\) cell connectivity: m%itfToNd (optional)
- cell \( \rightarrow\) interface connectivity: m%clToItf (optional)

A mesh 'm' is constructed from a mesh file

m = mesh(file, format)

A mesh can be saved to a file with 'gmsh' format and then visualised.

Definitions:

Cell, node, vertex, face, edge : see cell_mod

Mesh dimension: the dimension of its domain \( \Omega \).

Mesh interfaces:
- in dimension 3, interfaces are the faces of the 3D cells,
- in dimension 2, interfaces are the edges of the 2D cells,
- in dimension 1, interfaces are the vertexes of the 1D cells.
- they are defined with define_interfaces

Boundary cells. For a mesh with domain \(\Omega\) of dimension \( d \),
- \( \partial \Omega\) is composed of cells of dimension \( d-1 \).
- these cells are the boundary cells.
- the boundary cells might not be present in the mesh after it has been created,
- they can be added with define_domain_boundary

Tutorial examples:

mesh_visu.f90: construct and visualise a mesh.

Author: Charles Pierre

Function/Subroutine Documentation

◆ cell_orientation()

logical function, public mesh_mod::cell_orientation	(	type(mesh), intent(in)	m,
		integer, intent(in)	cl
	)

has cell 'cl' the direct orientation ?

Definition at line 777 of file mesh_mod.F90.

Here is the call graph for this function:

◆ closest_node()

subroutine, public mesh_mod::closest_node	(	integer, dimension(:), allocatable	V,
		real(rp), intent(out)	dist,
		real(rp), dimension(:,:), intent(in)	pt,
		type(mesh), intent(in)	m,
		type(graph), intent(in)	nDToNd,
		integer, intent(in), optional	start
	)

For each point X=pt(:,ii), determines a node V in the mesh m that minimises |X-V|.

The research is done following the successive neighbour nodes of a starting node (optional argument)

This starting node ideally has the largest connexion to other points. The default value is mndNd= the final mesh node.

The minimum might be local !

Input = ndToNd = node to node connectivity of mesh m

Definition at line 698 of file mesh_mod.F90.

Here is the call graph for this function:

◆ flag_mesh_cells()

subroutine, public mesh_mod::flag_mesh_cells	(	logical, dimension(:), allocatable	flag,
		type(mesh), intent(in)	m,
		integer, intent(in)	dim,
		procedure(r3tor), optional	f
	)

OUTPUT: flag(:) array of logical with size mnbCl.

for the cell 'cl' in the mesh 'm':
flag(cl) = .TRUE. iif:

the cell 'cl' has dimension 'dim'
f(x) >=0 at all node 'x' of the cell (if the argument 'f' is provided)

Definition at line 622 of file mesh_mod.F90.

Here is the call graph for this function:

◆ getndcoord()

subroutine, public mesh_mod::getndcoord	(	real(rp), dimension(3,s), intent(out)	ndCoord,
		integer, intent(in)	s,
		integer, dimension(n), intent(in)	ndInd,
		integer, intent(in)	n,
		type(mesh), intent(in)	m
	)

returns node coordinates of node indexes in ndInd

Assumption : s >= n !

Definition at line 599 of file mesh_mod.F90.

◆ gmesh_readmesh()

subroutine mesh_mod::gmesh_readmesh ( type(mesh), intent(out) m )

private

read mesh from gmsh ASCII file

Definition at line 316 of file mesh_mod.F90.

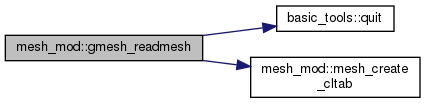

Here is the call graph for this function:

◆ gmesh_writemesh()

subroutine mesh_mod::gmesh_writemesh	(	type(mesh), intent(in)	m,
		logical, intent(in), optional	cell_tags
	)

private

write mesh to gmsh ASCII file

Definition at line 443 of file mesh_mod.F90.

◆ interface_orientation()

subroutine, public mesh_mod::interface_orientation	(	integer, intent(out)	nb_itf,
		integer, dimension(n), intent(out)	eps,
		integer, intent(in)	n,
		type(mesh), intent(in)	m,
		integer, intent(in)	cl
	)

eps(ii) = +1 if the interface ii of the cell cl in mesh m is oriented outwards the cell cl = -1 otherwise

Definition at line 824 of file mesh_mod.F90.

Here is the call graph for this function:

◆ mesh_clear()

subroutine mesh_mod::mesh_clear ( type(mesh), intent(inout) m )

private

Destructor for mesh type.

Definition at line 162 of file mesh_mod.F90.

Here is the call graph for this function:

◆ mesh_clear_2()

subroutine, public mesh_mod::mesh_clear_2 ( type(mesh), intent(inout) m )

Destructor for mesh type clears the data tn the mesh built after 'call create(...)'.

Definition at line 184 of file mesh_mod.F90.

◆ mesh_create_1d()

type(mesh) function mesh_mod::mesh_create_1d	(	real(rp), intent(in)	a,
		real(rp), intent(in)	b,
		integer, intent(in)	n
	)

private

Constructor for the type mesh

Build the one dimensional regualr mesh of the interval \( (a,b) \) with size \( h = (b-a)/n \)

The mesh is composed of :

the \( n \) edge-cells \( [a + (i-1)h, a+ih]\), \( i=1\dots n \),
the 2 vertex-cells \( \{a\} \) and \( \{b\} \)

OUTPUT:
- m = mesh

INPUT:
- a, b = define the interval \( (a ,b)\)
- n = number of 1D cells

Definition at line 513 of file mesh_mod.F90.

Here is the call graph for this function:

◆ mesh_create_cltab()

subroutine, public mesh_mod::mesh_create_cltab	(	type(mesh), intent(inout)	m,
		integer, dimension(:,:)	clTab
	)

mesh constructor, second step, cell types and cell nodes are known cell types are in mclType cell node index are in clTab

builds mclToNd connectivity graph

Definition at line 380 of file mesh_mod.F90.

◆ mesh_create_end()

subroutine, public mesh_mod::mesh_create_end ( type(mesh), intent(inout) m )

mesh constructor : final step

Definition at line 567 of file mesh_mod.F90.

◆ mesh_print()

subroutine mesh_mod::mesh_print ( type(mesh), intent(in) m )

private

display cell types in the mesh

Definition at line 202 of file mesh_mod.F90.

◆ mesh_valid()

logical function mesh_mod::mesh_valid ( type (mesh), intent(in) m )

private

Verify allocation.

Definition at line 239 of file mesh_mod.F90.

◆ mesh_write()

subroutine mesh_mod::mesh_write	(	type(mesh), intent(in)	m,
		character(len=*), intent(in)	fileName,
		character(len=*), intent(in)	fileFormat,
		logical, intent(in), optional	cell_tags
	)

private

Write mesh 'm' to file 'fileName' with format 'fileFormat'.

If optional argument 'cell_tags=.TRUE', write the cell tags as element values in the output file

Definition at line 420 of file mesh_mod.F90.

Here is the call graph for this function:

◆ readmesh()

type(mesh) function mesh_mod::readmesh	(	character(len=*), intent(in)	fileName,
		character(len=*), intent(in)	fileFormat
	)

private

Constructor for the type mesh

Read a mesh from a file.

OUTPUT:
- m = mesh

INPUT:
- fileName
- fileFormat that can be
  - 'gmsh' for gmsh files

Definition at line 285 of file mesh_mod.F90.

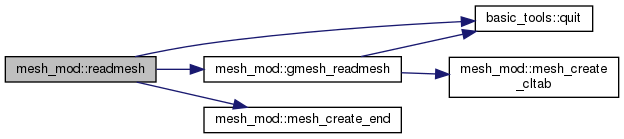

Here is the call graph for this function:
