DEFINITION OF GEOMETRICAL CELLS (for meshes) More...
Functions/Subroutines | |
| subroutine, public | cell_init (b) |
| Initialisation of all the arrays CELL_XXX. More... | |
| subroutine | def_cell () |
| Initialisation of : CELL_NAME, CELL_NBNODES, CELL_NBVTX, CELL_NBED, CELL_NBFC , CELL_NBITF, CELL_DIM , CELL_GEO. More... | |
| subroutine | def_cell_ed_vtx () |
| Array CELL_ED_VTX initialisation. More... | |
| subroutine | def_cell_fc () |
| Array CELL_FC initialisation. More... | |
| subroutine | def_gmsh_to_cell () |
| Array CELL_TO_GMSH, GMSH_TO_CELL initialisation. More... | |
| subroutine | def_cell_coord () |
| Array CELL_COORD initialisation. More... | |
Variables | |
| character(len=4), dimension(cell_tot_nb), public | cell_name |
| CELL_ARRAY Arrays describing cells. More... | |
| integer, dimension(cell_tot_nb), public | cell_nbnodes =0 |
| Number of nodes for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_nbvtx =0 |
| Number of vertexes for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_nbed =0 |
| Number of edges for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_nbfc =0 |
| Number of faces for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_nbitf =0 |
| Number of interfaces for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_dim =0 |
| Dimension for each cell type. More... | |
| integer, dimension(cell_tot_nb), public | cell_geo =0 |
| Associated reference cell for each cell type. More... | |
| integer, dimension(2, cell_max_nbed, cell_tot_nb), public | cell_ed_vtx =0 |
| CELL_ED_VTX(1:2, ed, cl) = vertexes for the edge ed of the cell cl. More... | |
| integer, dimension(cell_max_nbfc, cell_tot_nb), public | cell_fc_nbvtx =0 |
| CELL_FC_NBVTX(fc, cl) = number of vertexes for the face fc of the cell cl. More... | |
| integer, dimension(cell_max_nbvtx, cell_max_nbfc, cell_tot_nb), public | cell_fc_vtx =0 |
| CELL_FC_VTX(1:n, fc, cl) = vertexes for the face fc of the cell cl, with n = CELL_FC_NBVTX(fc, cl) More... | |
| integer, dimension(cell_tot_nb), public | cell_to_gmsh = -1 |
| Dictionnary cell desc. –> GMSH cell desc. More... | |
| integer, dimension(:), allocatable, public | gmsh_to_cell |
| Dictionnary GMSH cell desc. –> CHORAL cell desc. More... | |
| type(r_2d), dimension(cell_tot_nb), public | cell_coord |
| Cell node coordinates. More... | |
Detailed Description
DEFINITION OF GEOMETRICAL CELLS (for meshes)
Choral constants for cells: CELL_xxx, see the list.
Geometrical cells composing meshes are described here.
DEFINITIONS
- Cell: a cell is a geometrical element (or control volume), for instance a tetrahedron or a triangle.
- A cell can be of dimension 0 to 3.
- A cell is always considered as embedded in \( \R^3\).
- A cell can be curved (hypergeometrical element).
- Node: a cell is defined with a set of ordered nodes.
- A node is a point in \(\R^3\).
- For instance a parabolic triangle has 6 nodes:
its 3 vertexes and the three midpoints od its edges.
- Vertex: a vertex of a cell.
- A cell of type CELL_xxx has \( n\) = CELL_NBVTX(CELL_xxx) vertexes, they are ordered.
- A vertex is always a node, but a node is not a vertex in general.
- convention for the ordering of cell nodes:
nodes \(1 \dots n\) are the cell vertexes with the same ordering. - A vertex is a geometrical cell of dimension 0.
- A cell of dimension 0 has 1 vertex: itself
- Edge: edge of a cell (dimension \( \ge 1\)).
- Edges can be curved: a curved cell has curved edges.
- An edge is a cell of dimension 1.
- A cell of dimension 1 has 1 edge: itself.
- Face: face of a cell (dimension \( \ge 2\)).
- Faces can be curved: a curved cell has curved faces.
- A face is a cell of dimension 2.
- A cell of dimension 2 has 1 face: itself.
- Reference cell: A cell is defined with a reference cell and a geometrical transformation.
- Geometrical transformation are defined in geotsf_mod.
- A reference cell is straight (not curved): a line segment, a triangle...
- The reference cell associated to a cell is referred to as the cell geometry in the library choral.
DESCRIPTION: cells are described by
- several integer constants (see the list) such as CELL_MAX NBVTX
- these constants have to be updated when adding a new cell type.
- a series of arrays (see the list) such as CELL_NBVTX:
- for a triangle cell (with type CELL_TRG), its number of vertexes is CELL_NBVTX(CELL_TRG)
- these arrays are initiated with call cell_init()
- for a triangle cell (with type CELL_TRG), its number of vertexes is
Function/Subroutine Documentation

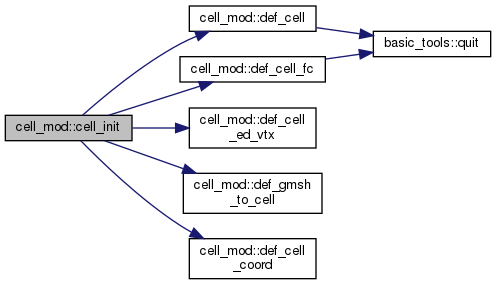

◆ cell_init()
| subroutine, public cell_mod::cell_init | ( | logical, intent(in) | b | ) |
Initialisation of all the arrays CELL_XXX.
Definition at line 163 of file cell_mod.f90.
◆ def_cell()
|
private |
Initialisation of : CELL_NAME, CELL_NBNODES, CELL_NBVTX, CELL_NBED, CELL_NBFC , CELL_NBITF, CELL_DIM , CELL_GEO.
Definition at line 178 of file cell_mod.f90.
◆ def_cell_coord()
|
private |
Array CELL_COORD initialisation.
Definition at line 338 of file cell_mod.f90.
◆ def_cell_ed_vtx()
|
private |
Array CELL_ED_VTX initialisation.
Definition at line 253 of file cell_mod.f90.
◆ def_cell_fc()
|
private |
Array CELL_FC initialisation.
Definition at line 284 of file cell_mod.f90.
◆ def_gmsh_to_cell()
|
private |
Array CELL_TO_GMSH, GMSH_TO_CELL initialisation.
Definition at line 312 of file cell_mod.f90.
Variable Documentation
◆ cell_coord
| type(r_2d), dimension(cell_tot_nb), public cell_mod::cell_coord |
Cell node coordinates.
Definition at line 155 of file cell_mod.f90.
◆ cell_dim
| integer, dimension(cell_tot_nb), public cell_mod::cell_dim =0 |
Dimension for each cell type.
Definition at line 130 of file cell_mod.f90.
◆ cell_ed_vtx
| integer, dimension(2,cell_max_nbed,cell_tot_nb), public cell_mod::cell_ed_vtx =0 |
CELL_ED_VTX(1:2, ed, cl) = vertexes for the edge ed of the cell cl.
Definition at line 137 of file cell_mod.f90.
◆ cell_fc_nbvtx
| integer, dimension(cell_max_nbfc,cell_tot_nb), public cell_mod::cell_fc_nbvtx =0 |
CELL_FC_NBVTX(fc, cl) = number of vertexes for the face fc of the cell cl.
Definition at line 141 of file cell_mod.f90.
◆ cell_fc_vtx
| integer, dimension(cell_max_nbvtx,cell_max_nbfc,cell_tot_nb), public cell_mod::cell_fc_vtx =0 |
CELL_FC_VTX(1:n, fc, cl) = vertexes for the face fc of the cell cl, with n = CELL_FC_NBVTX(fc, cl)
Definition at line 146 of file cell_mod.f90.
◆ cell_geo
| integer, dimension(cell_tot_nb), public cell_mod::cell_geo =0 |
Associated reference cell for each cell type.
Definition at line 133 of file cell_mod.f90.
◆ cell_name
| character(len=4), dimension(cell_tot_nb), public cell_mod::cell_name |
CELL_ARRAY Arrays describing cells.
Name for each cell type
Definition at line 112 of file cell_mod.f90.
◆ cell_nbed
| integer, dimension(cell_tot_nb), public cell_mod::cell_nbed =0 |
Number of edges for each cell type.
Definition at line 121 of file cell_mod.f90.
◆ cell_nbfc
| integer, dimension(cell_tot_nb), public cell_mod::cell_nbfc =0 |
Number of faces for each cell type.
Definition at line 124 of file cell_mod.f90.
◆ cell_nbitf
| integer, dimension(cell_tot_nb), public cell_mod::cell_nbitf =0 |
Number of interfaces for each cell type.
Definition at line 127 of file cell_mod.f90.
◆ cell_nbnodes
| integer, dimension(cell_tot_nb), public cell_mod::cell_nbnodes =0 |
Number of nodes for each cell type.
Definition at line 115 of file cell_mod.f90.
◆ cell_nbvtx
| integer, dimension(cell_tot_nb), public cell_mod::cell_nbvtx =0 |
Number of vertexes for each cell type.
Definition at line 118 of file cell_mod.f90.
◆ cell_to_gmsh
| integer, dimension(cell_tot_nb), public cell_mod::cell_to_gmsh = -1 |
Dictionnary cell desc. –> GMSH cell desc.
Definition at line 149 of file cell_mod.f90.
◆ gmsh_to_cell
| integer, dimension(:), allocatable, public cell_mod::gmsh_to_cell |
Dictionnary GMSH cell desc. –> CHORAL cell desc.
Definition at line 152 of file cell_mod.f90.
