fespacexk_mod::fespacexk Interface Reference

The type feSpacexk defines \( Y = [ X_h ]^k \) for \( X_h \) a finite element space. More...

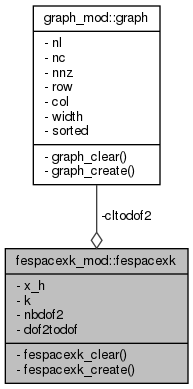

Collaboration diagram for fespacexk_mod::fespacexk:

Private Member Functions
final	fespacexk_clear
	destructor More...
type(fespacexk) function	fespacexk_create (X_h, k)
	Constructor for the type feSpacexk More...

Private Attributes
type(fespace), pointer	x_h =>NULL()
	associated feSpace More...
integer	k
	exponent More...
integer	nbdof2 =0
	DOF. More...
integer, dimension(:), allocatable	dof2todof
	correspondance dof2 –> dof of X_h More...
type(graph)	cltodof2

Detailed Description

The type feSpacexk defines \( Y = [ X_h ]^k \) for \( X_h \) a finite element space.

\(Y\) is defined relativelly to:

• a finite elements space \(X_h\) of type feSpace
• an integer \(k\)

\(Y\) as \(k\) times more degrees of freedom than \(X_h\). They are ordered as follows:

• Dof 1 of \(X_h\) \( \rightarrow \) DOF \(~ 1, \dots, k~~\) of \(Y\)
• \( \dots \)
• Dof \(i\) of \(X_h\) \( \rightarrow \) DOF \(~ k(i-1)+1, \dots, ki~~\) of \(Y\)

To avoid confusion. they are denoted:

• DOF for \(X_h\)
• DOF2 for \(Y \)

To \(Y\) are associated:

• Y%clToDof2 = connectivity between the mesh cells and the degrees of freedom of Y
• Y%dof2ToDof = connectivity between the degrees of freedom of Y and the degrees of freedom of X_h

Definition at line 94 of file feSpacexk_mod.f90.

Member Function/Subroutine Documentation

fespacexk_clear()

final fespacexk_mod::fespacexk::fespacexk_clear ( )

finalprivate

destructor

Definition at line 116 of file feSpacexk_mod.f90.

Here is the call graph for this function:

fespacexk_create()

type(fespacexk) function fespacexk_mod::fespacexk::fespacexk_create ( type(fespace), target  X_h, integer, intent(in)  k  )

private

Constructor for the type feSpacexk

• OUTPUT:
  • Y = \( [X_h]^k \)

• INPUT:
  • X_h = feSpace, finite element space
  • k = integer

Definition at line 184 of file feSpacexk_mod.f90.

Member Data Documentation

cltodof2

type(graph) fespacexk_mod::fespacexk::cltodof2

private

Definition at line 111 of file feSpacexk_mod.f90.

dof2todof

integer, dimension(:), allocatable fespacexk_mod::fespacexk::dof2todof

private

correspondance dof2 –> dof of X_h

Definition at line 106 of file feSpacexk_mod.f90.

k

integer fespacexk_mod::fespacexk::k

private

exponent

Definition at line 100 of file feSpacexk_mod.f90.

nbdof2

integer fespacexk_mod::fespacexk::nbdof2 =0

private

DOF.

Definition at line 103 of file feSpacexk_mod.f90.

x_h

type(fespace), pointer fespacexk_mod::fespacexk::x_h =>NULL()

private

associated feSpace

Definition at line 97 of file feSpacexk_mod.f90.

---

The documentation for this interface was generated from the following file:

• /home/cpierre1/choral/SRC/feSpacexk_mod.f90
