ode_monodomain_2d.f90 File Reference

Go to the source code of this file.

Functions/Subroutines

program ode_monodomain_2d
  RESOLUTION OF: the monodomain model in cardiac-electrophysiology. More...

subroutine pde_reaction (a, b, x, t, y, N, Na)

subroutine massmat (yy, xx)

subroutine stiffmat (yy, xx)

subroutine kinv (xx, ierr, bb)


Function/Subroutine Documentation

◆ kinv()

subroutine ode_monodomain_2d::kinv ( real(rp), dimension(:), intent(inout)  xx,
logical, intent(out)  ierr,
real(rp), dimension(:), intent(in)  bb
)

Definition at line 310 of file ode_monodomain_2d.f90.

◆ massmat()

subroutine ode_monodomain_2d::massmat ( real(rp), dimension(:), intent(out)  yy,
real(rp), dimension(:), intent(in)  xx
)

Definition at line 287 of file ode_monodomain_2d.f90.

◆ ode_monodomain_2d()

program ode_monodomain_2d ( )

RESOLUTION OF: the monodomain model in cardiac-electrophysiology.

This partial differential equation models the spreading of excitation of the transmembrane potential in the cardiac tissue at a macroscopic scale.

It is a parabolic reaction-diffusion equation of the form: for \( x\in \Omega \) and \( t\in '0,T)\)

\( ~~~~~~~~~~~~~~~~\displaystyle{ \frac{{\rm d} Y_i(x,t)}{{\rm d} t } = F_i(Y), \quad \quad i=1\dots N-1,}\)

\( ~~~~~~~~~~~~~~~~\displaystyle{ \frac{\partial V}{\partial t } = \dv( B(x)\nabla V) + I_{\rm ion}(Y) + I_{\rm app}(x,t), \quad {\rm with} \quad V = Y_N. }\),

where \( Y_i(x,t)\in\R\) and \(V(x,t)\in\R\) are scalars unknowns.

Settings:

  • 2D square geometry,
  • constant anisotropy (horizontal fibres),
  • Beeler Reuter cellular model (can be switched to TNNP)
  • smooth stimulation at the origin

Numerical method:

  • P3 finite elements (can be switched to P1 or P2)
  • stabilised time stepping method (can be modified):
  • BDF-SBDF of order 3 for the potential equation
  • Rush-Larsen of order 3 for the ionic model ODE system

Output: (with the software gmsh)

  • Potential depolarisation wave spreading
  • Associated activation times

Charles PIERRE

Definition at line 43 of file ode_monodomain_2d.f90.

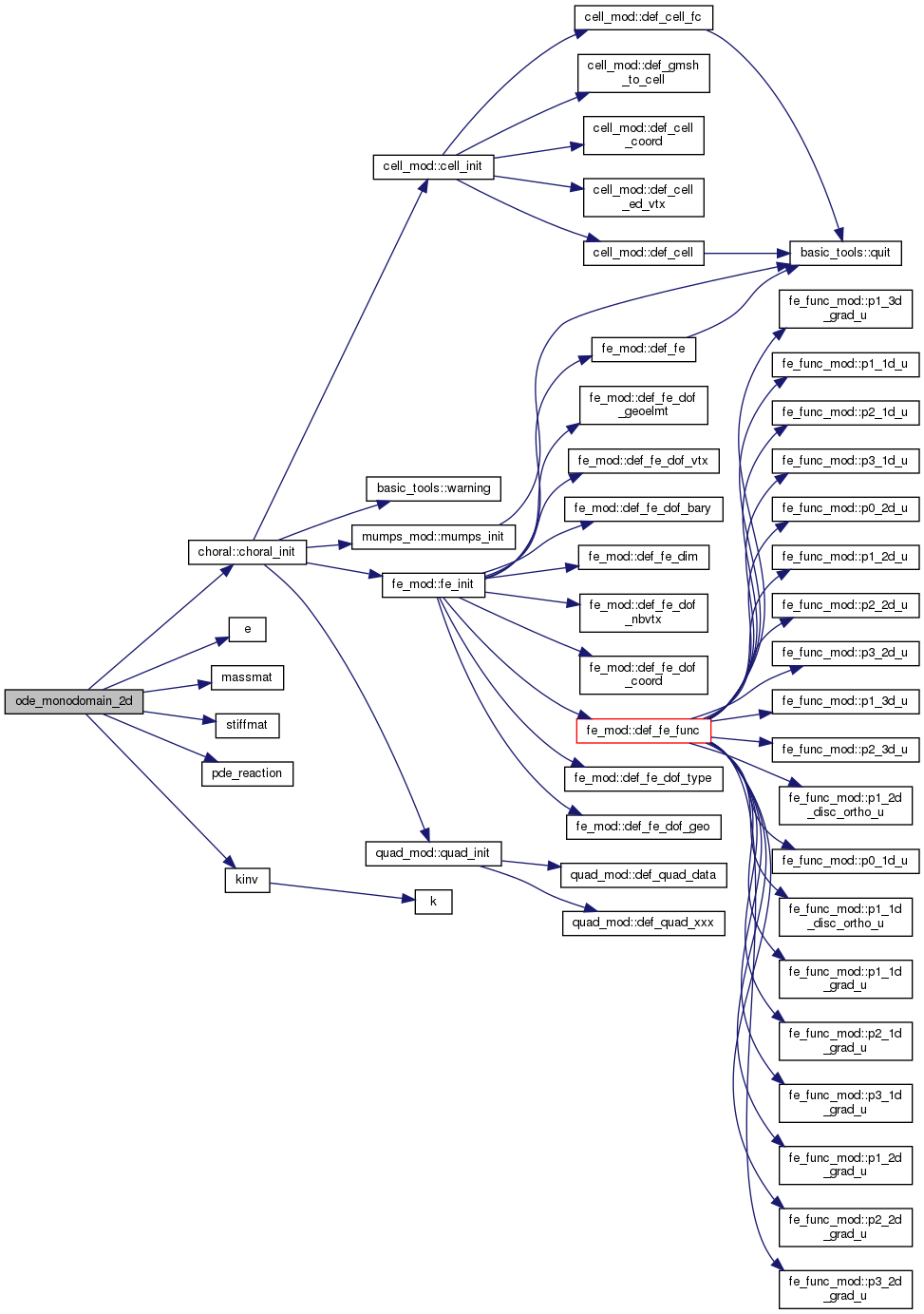

Here is the call graph for this function:

◆ pde_reaction()

subroutine ode_monodomain_2d::pde_reaction ( real(rp), dimension(na), intent(out)  a,
real(rp), dimension(n), intent(out)  b,
real(rp), dimension(3), intent(in)  x,
real(rp), intent(in)  t,
real(rp), dimension(n), intent(in)  y,
integer, intent(in)  N,
integer, intent(in)  Na
)

Definition at line 261 of file ode_monodomain_2d.f90.

◆ stiffmat()

subroutine ode_monodomain_2d::stiffmat ( real(rp), dimension(:), intent(out)  yy,
real(rp), dimension(:), intent(in)  xx
)

Definition at line 297 of file ode_monodomain_2d.f90.
