ode_opsplt_mod Module Reference

DERIVED TYPE ode_opSplt: operator splitting methods for ODEs. More...

Data Types
interface	clear
	destructor More...
interface	ode_opsplt
	The type opSplt defines operator spltting methods. More...
interface	print
	print 'ode_opSplt' parameters More...
interface	valid
	check 'ode_opSplt' parameters More...

Functions/Subroutines
subroutine	ode_opsplt_clear (os)
	destructor for 'ode_opSplt' More...
type(ode_opsplt) function	ode_opsplt_create (method, L_meth, NL_meth, check_overflow)
	Constructor for the type ode_opSplt More...
subroutine	def_splitting (os)
	Define splitting methods. More...
logical function	ode_opsplt_valid (os)
subroutine	ode_opsplt_print (os)
character(len=15) function, public	name_ode_method_opsplt (method)
	Get operator splitting method name. More...
integer function, public	order_ode_method_opsplt (method)
	Get operator splitting method name. More...
subroutine, public	create_ode_opsplt_sol (sol, pb, os)
subroutine, public	solve_ode_opsplt (sol, t0, T, dt, os, pb, kry, out)
	solve : operator splitting with constant time step More...

Detailed Description

DERIVED TYPE ode_opSplt: operator splitting methods for ODEs.

Choral constants for operator splitting methods for ODEs: ODE_OS_xxx, see the list.

The type ode_opsplt defines operator splitting methods for ODEs.

Addressed ODE problems (see ode_problem_mod detailed description):

• ODE_PB_SL = semilinear problem
• ODE_PB_SL_NL = semilinear problem coupled with ODE systems

An ode_opsplt method 'os' is constructed with:

os = opsplt(os_meth, l_meth, nl_meth)

• OS_meth = operator splitting method
• L_meth = one step linear ODE solver
• NL_meth = one step non-linear ODE solver

To solve an ODE with an operator splitting solver, follow the steps in ode_solver_mod.

Author

Charles Pierre

Function/Subroutine Documentation

create_ode_opsplt_sol()

subroutine, public ode_opsplt_mod::create_ode_opsplt_sol	(	type(ode_solution), intent(inout)	sol,
		type(ode_problem), intent(in)	pb,
		type(ode_opsplt), intent(in)	os
	)

Definition at line 377 of file ode_opSplt_mod.f90.

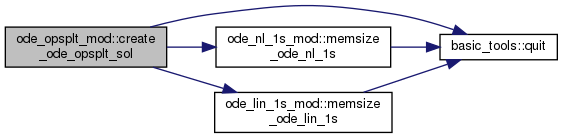

Here is the call graph for this function:

def_splitting()

subroutine ode_opsplt_mod::def_splitting ( type(ode_opsplt), intent(inout)  os )

private

Define splitting methods.

Definition at line 218 of file ode_opSplt_mod.f90.

Here is the call graph for this function:

name_ode_method_opsplt()

character(len=15) function, public ode_opsplt_mod::name_ode_method_opsplt

(

integer, intent(in)

method

)

Get operator splitting method name.

Definition at line 321 of file ode_opSplt_mod.f90.

ode_opsplt_clear()

subroutine ode_opsplt_mod::ode_opsplt_clear ( type(ode_opsplt), intent(inout)  os )

private

destructor for 'ode_opSplt'

Definition at line 149 of file ode_opSplt_mod.f90.

ode_opsplt_create()

type(ode_opsplt) function ode_opsplt_mod::ode_opsplt_create ( integer, intent(in)  method, integer, intent(in)  L_meth, integer, intent(in)  NL_meth, logical, intent(in), optional  check_overflow  )

private

Constructor for the type ode_opSplt

• OUTPUT:
  • os = ode_opsplt

• INPUT:
  • method = operator spltiting method
  • L_meth = one step solver for the linear part
  • NL_meth = one step solver for the non-linear part

  • optional: check_overflow = checks overflow when solving

Definition at line 183 of file ode_opSplt_mod.f90.

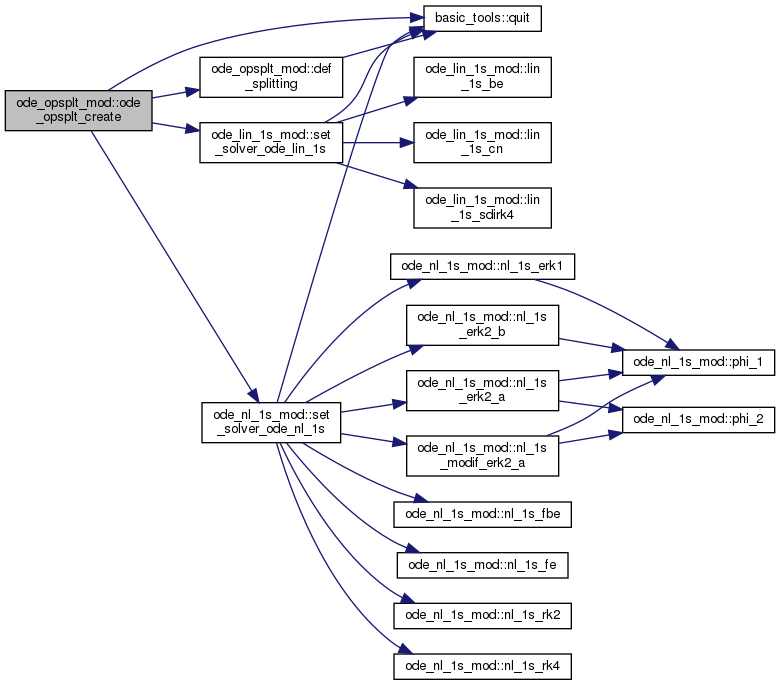

Here is the call graph for this function:

ode_opsplt_print()

subroutine ode_opsplt_mod::ode_opsplt_print ( type(ode_opsplt), intent(in)  os )

private

Definition at line 300 of file ode_opSplt_mod.f90.

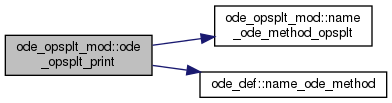

Here is the call graph for this function:

ode_opsplt_valid()

logical function ode_opsplt_mod::ode_opsplt_valid ( type(ode_opsplt), intent(in)  os )

private

Definition at line 286 of file ode_opSplt_mod.f90.

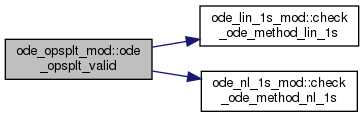

Here is the call graph for this function:

order_ode_method_opsplt()

integer function, public ode_opsplt_mod::order_ode_method_opsplt

(

integer, intent(in)

method

)

Get operator splitting method name.

Definition at line 351 of file ode_opSplt_mod.f90.

solve_ode_opsplt()

subroutine, public ode_opsplt_mod::solve_ode_opsplt	(	type(ode_solution), intent(inout)	sol,
		real(rp), intent(in)	t0,
		real(rp), intent(in)	T,
		real(rp), intent(in)	dt,
		type(ode_opsplt), intent(in)	os,
		type(ode_problem), intent(in)	pb,
		type(krylov), intent(inout)	kry,
		procedure(ode_output_proc)	out
	)

solve : operator splitting with constant time step

Definition at line 399 of file ode_opSplt_mod.f90.

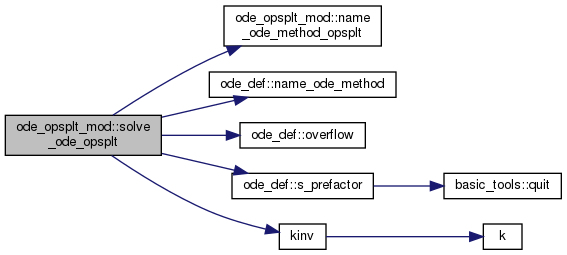

Here is the call graph for this function:
