krylov_mod Module Reference

DERIVED TYPE krylov: for the resolution of linear systems More...

Data Types
interface	clear
	destructor More...
interface	krylov
	The type krylov defines the settings of a linear solver. More...
interface	print
	print a short description More...
interface	solve
	solve More...

Functions/Subroutines
subroutine	krylov_clear (k)
	Destructor. More...
type(krylov) function	krylov_create (type, tol, itMax, restart, verb)
	Constructor for the type krylov More...
subroutine	krylov_print (k)
	Print a short description. More...
subroutine	solve_start (k)
	Reset krylov parameters before solving. More...
subroutine	solve_end (k)
	ends up solving More...
subroutine	krylov_solve_raw (x, k, b, A)
	SOLVE : KRYLOV no preconditioning. More...
subroutine	krylov_solve_csr (x, k, b, mat)
	SOLVE : KRYLOV no preconditioning. More...
subroutine	krylov_solve_pc (x, k, b, A, pc)
	SOLVE : KRYLOV with preconditioning. More...
subroutine	krylov_solve_prec (x, k, b, mat, pc)
	KRYLOV with preconditioning defined with a prec type. More...

Variables
real(dp)	time_start
real(dp)	time_end

Detailed Description

DERIVED TYPE krylov: for the resolution of linear systems

Choral constants for linear solvers have the form KRY_xxx.

A variable 'kry' with type krylov gathers the settings for a linear solver.
It is constructed e.g. with

kry = krylov(type=kry_cg, tol=1e5-_rp, ...)

A linear problem \( Ax = b \) is solved with

call solve(x, kry, b, ...)

Various calling sequence are available;

• matrix free
• csr matrix for \( A \)
• preconditionned with precond,

see the solve documentation below.

Author

Charles Pierre

Function/Subroutine Documentation

krylov_clear()

subroutine krylov_mod::krylov_clear ( type(krylov), intent(inout)  k )

private

Destructor.

Definition at line 155 of file krylov_mod.f90.

Here is the call graph for this function:

krylov_create()

type(krylov) function krylov_mod::krylov_create ( integer, intent(in), optional  type, real(rp), intent(in), optional  tol, integer, intent(in), optional  itMax, integer, intent(in), optional  restart, integer, intent(in), optional  verb  )

private

Constructor for the type krylov

• OUTPUT:
  • k = krylov

• INPUT:
• type = Krylov solver type
• tol = Tolerance
• itMax = Max iteration number
• restart= Restart number (GmRes)
• verb = Verbosity

These are optional arguments: default values are set in the type krylov definition.

Definition at line 183 of file krylov_mod.f90.

Here is the call graph for this function:

krylov_print()

subroutine krylov_mod::krylov_print ( type(krylov), intent(in)  k )

private

Print a short description.

Definition at line 209 of file krylov_mod.f90.

krylov_solve_csr()

subroutine krylov_mod::krylov_solve_csr ( real(rp), dimension(:), intent(inout)  x, type(krylov), intent(inout)  k, real(rp), dimension(:), intent(in)  b, type(csr), intent(in)  mat  )

private

SOLVE : KRYLOV no preconditioning.

csr mat format

Definition at line 298 of file krylov_mod.f90.

Here is the call graph for this function:

krylov_solve_pc()

subroutine krylov_mod::krylov_solve_pc ( real(rp), dimension(:), intent(inout)  x, type(krylov), intent(inout)  k, real(rp), dimension(:), intent(in)  b, procedure(rntorn)  A, procedure(rntorn)  pc  )

private

SOLVE : KRYLOV with preconditioning.

Definition at line 322 of file krylov_mod.f90.

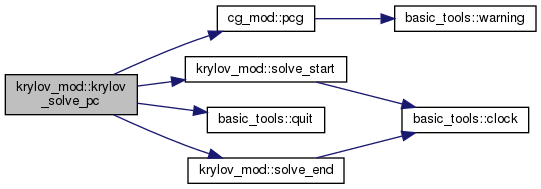

Here is the call graph for this function:

krylov_solve_prec()

subroutine krylov_mod::krylov_solve_prec ( real(rp), dimension(:), intent(inout)  x, type(krylov), intent(inout)  k, real(rp), dimension(:), intent(in)  b, type(csr), intent(in)  mat, type(precond), intent(inout)  pc  )

private

KRYLOV with preconditioning defined with a prec type.

Definition at line 351 of file krylov_mod.f90.

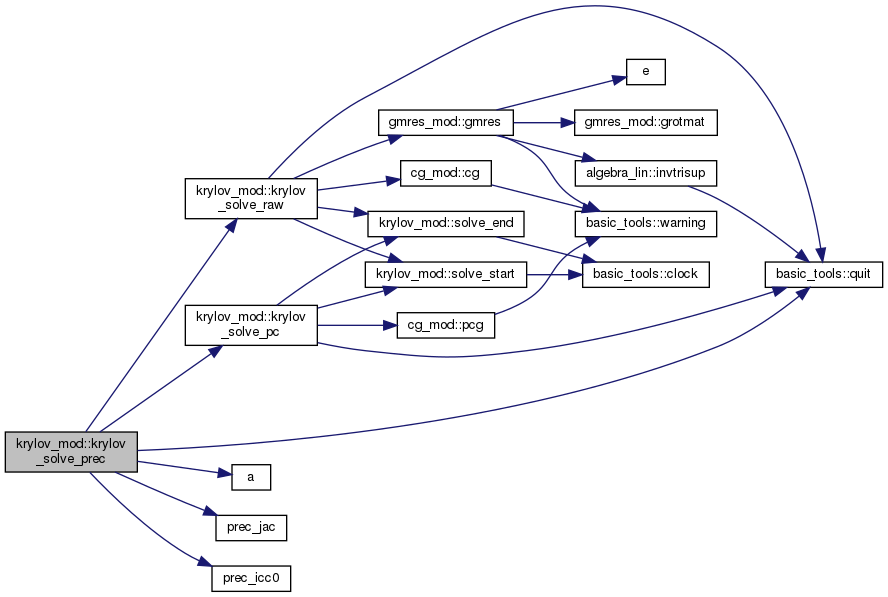

Here is the call graph for this function:

krylov_solve_raw()

subroutine krylov_mod::krylov_solve_raw ( real(rp), dimension(:), intent(inout)  x, type(krylov), intent(inout)  k, real(rp), dimension(:), intent(in)  b, procedure(rntorn)  A  )

private

SOLVE : KRYLOV no preconditioning.

Definition at line 260 of file krylov_mod.f90.

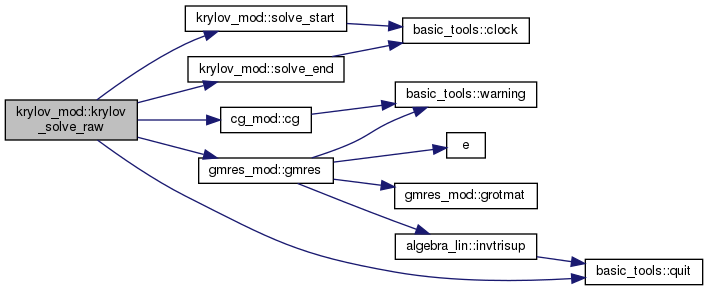

Here is the call graph for this function:

solve_end()

subroutine krylov_mod::solve_end ( type(krylov), intent(inout)  k )

private

ends up solving

Definition at line 241 of file krylov_mod.f90.

Here is the call graph for this function:

solve_start()

subroutine krylov_mod::solve_start ( type(krylov), intent(inout)  k )

private

Reset krylov parameters before solving.

Definition at line 225 of file krylov_mod.f90.

Here is the call graph for this function:

Variable Documentation

time_end

real(dp) krylov_mod::time_end

private

Definition at line 146 of file krylov_mod.f90.

time_start

real(dp) krylov_mod::time_start

private

Definition at line 146 of file krylov_mod.f90.
